Pipedata

For professionals in need of quick and easy access to dimensional, weight, and piping design information, Pipedata is the go-to resource. Since its inception in 1996 with the launch of Pipedata-Pro, Pipedata has established itself as a cornerstone in the global piping industry. It's renowned for its accuracy and regularly updated, relevant information, making it a valuable tool for both large corporations and individual engineers.

Pipedata provides comprehensive dimensional and weight data for 72 common ASME piping components, all accessible through a user-friendly interface. It adheres to the latest ASME piping dimensional specifications, offering data in Metric, U.S. Customary Units, and Inch Fractions. Additionally, it supports both NPS and DN pipe sizes and includes audited weights for valves, flanges, pipes, and other piping components.

Data Summary

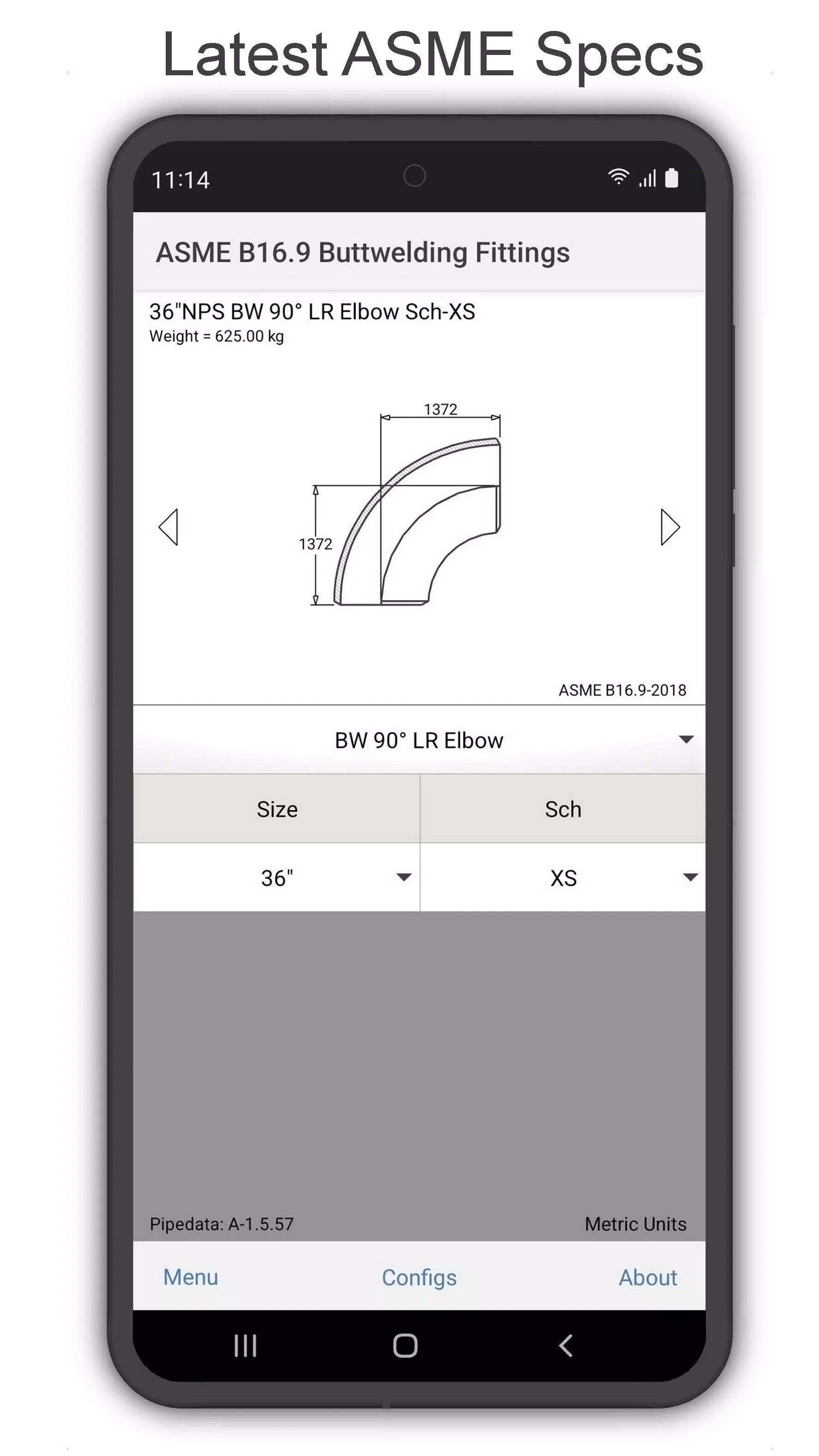

• Pipe ASME B36.10M/19M - 2004
• WeldNeck Flange, ASME B16.5-2013
• Slip On Flange, ASME B16.5-2013
• Blind Flange, ASME B16.5-2013
• Threaded Flange, ASME B16.5-2013
• SocketWelded Flange, ASME B16.5-2013
• Lapped Flange, ASME B16.5-2013
• Long Welding Neck Flange, ASME B16.5-2013
• Buttwelded 45deg Elbow, ASME B16.9-2007
• Buttwelded 90deg Long Radius Elbow, ASME B16.9-2007
• Buttwelded 180deg Long Radius Return, ASME B16.9-2007
• Buttwelded 90deg Short Radius Elbow, ASME B16.9-2007
• Buttwelded 180deg Short Radius Return, ASME B16.9-2007
• Buttwelded Equal Tee, ASME B16.9-2007
• Buttwelded Reducing Tee, ASME B16.9-2007
• Buttwelded Cap, ASME B16.9-2007
• Buttwelded Concentric Reducer, ASME B16.9-2007
• Buttwelded Eccentric Reducer, ASME B16.9-2007
• Buttwelded Lap Joint Stub End, ASME B16.9-2007
• Threaded 90deg Elbow, ASME B16.11-2011
• Threaded Tee, ASME B16.11-2011
• Threaded Cross, ASME B16.11-2011
• Threaded 45deg Elbow, ASME B16.11-2011
• Threaded 90deg Street Elbow, ASME B16.11-2011
• Threaded Coupling, ASME B16.11-2011
• Threaded Half Coupling, ASME B16.11-2011
• Threaded Cap, ASME B16.11-2011
• Threaded Square Head Plug, ASME B16.11-2011
• Threaded Hex Head Plug, ASME B16.11-2011
• Threaded Round Head Plug, ASME B16.11-2011
• Threaded Hex Head Bushing, ASME B16.11-2011
• Threaded Flush Bushing, ASME B16.11-2011
• Socketwelded 90deg Elbow, ASME B16.11-2011
• Socketwelded 45deg Elbow, ASME B16.11-2011
• Socketwelded Tee, ASME B16.11-2011
• Socketwelded Cross, ASME B16.11-2011
• Socketwelded Coupling, ASME B16.11-2011
• Socketwelded Half Coupling, ASME B16.11-2011
• Socketwelded Cap, ASME B16.11-2011
• Socketwelded Reducing Coupling, ASME Unadopted
• Socketwelded Welding Boss, ASME Unadopted
• Socketwelded Reducing Insert Type 1, ASME Unadopted
• Socketwelded Reducing Insert Type 2, ASME Unadopted
• Socketwelded Reducing Insert Type 3, ASME Unadopted
• Socketwelded Union, ASME Unadopted
• Socket Details, ASME B16.11-2011
• Non Metallic Flat Ring for ASME B16.5 Flanges, ASME B16.21-2011
• Non Metallic Flat Ring for ASME B16.47 Series A Flanges, ASME B16.21-2011
• Non Metallic Flat Ring for ASME B16.47 Series B Flanges, ASME B16.21-2011
• Spiral wound for ASME B16.5 Flanges, ASME B16.20-2012
• Spiral wound for ASME B16.47 Series A Flanges, ASME B16.20-2012
• Spiral wound for ASME B16.47 Series B Flanges, ASME B16.20-2012
• RTJ Soft Iron Ring type R, ASME B16.20-2012
• RTJ Soft Iron Ring RX, ASME B16.20-2012
• RTJ Soft Iron Ring BX, ASME B16.20-2012
• Flanged Gate Valve, ASME B16.10-2009
• Flanged Globe Valve, ASME B16.10-2009
• Flanged Ball Valve, ASME B16.10-2009
• Flanged Control Valve, ASME B16.10-2009
• Flanged Swing Check Valve, ASME B16.10-2009
• Flanged Wafer Check Valve, API 594
• Wafer type Butterfly Valves, ASME B16.10-2009
• Lug type Butterfly Valves, ASME B16.10-2009
• ButtWelded Gate Valve, ASME B16.10-2009

- and much more. Check it out for a comprehensive suite of piping data that can streamline your design and engineering processes.
